Description
The use of a high-quality and efficient vibrating screen is a prerequisite, as the latter greatly influences the classifying of the crushed product, which is the most important step in a crushing system.

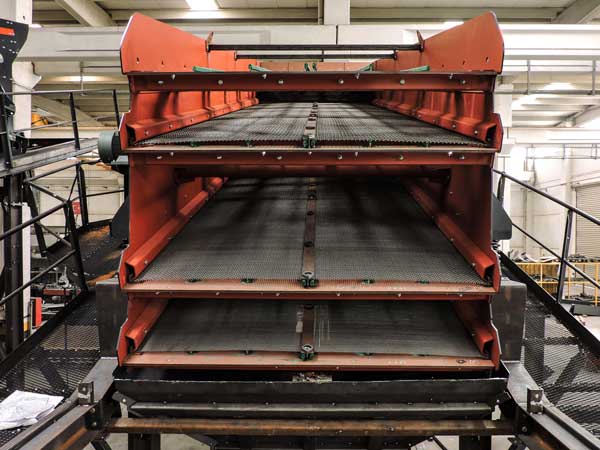

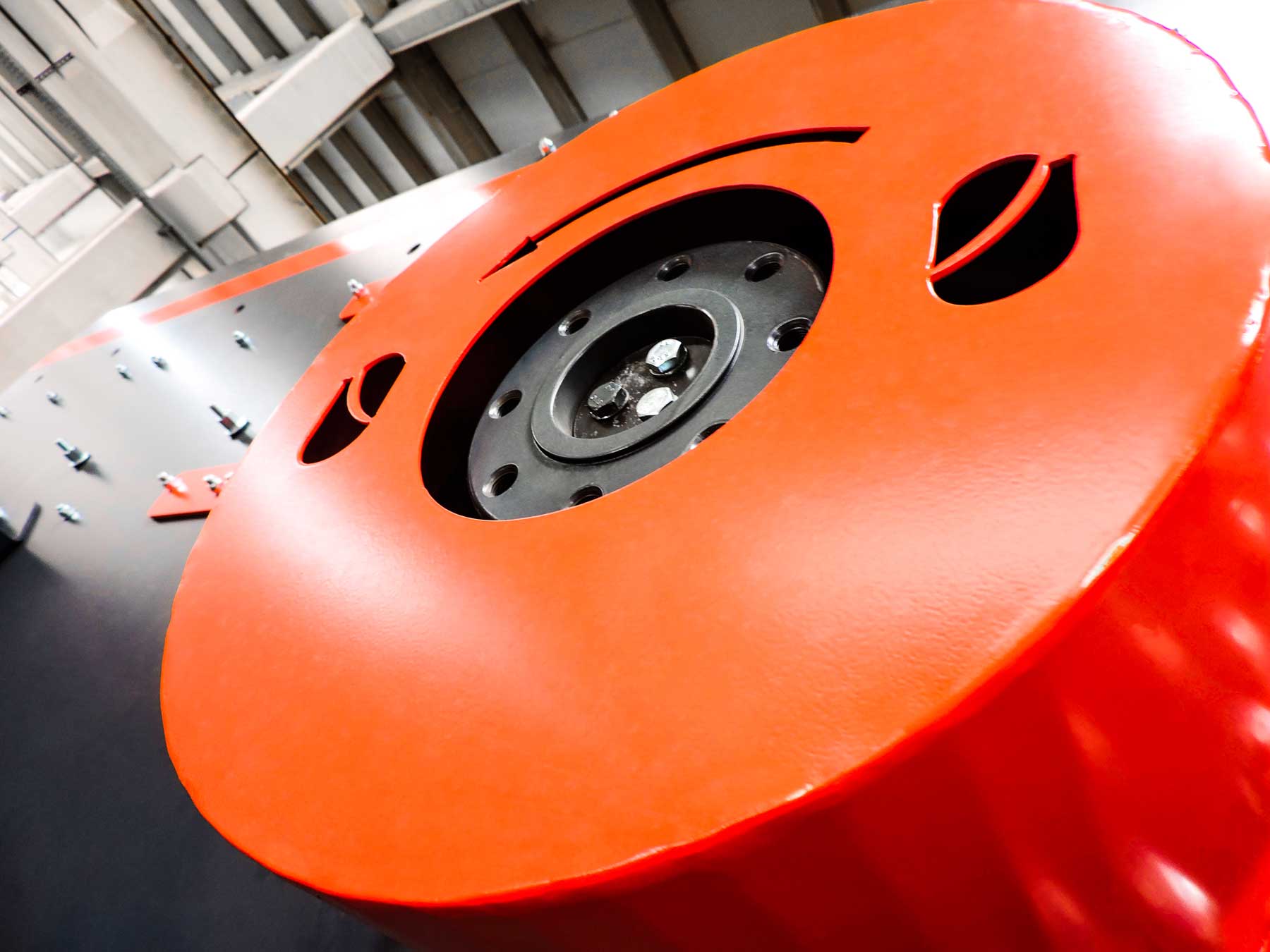

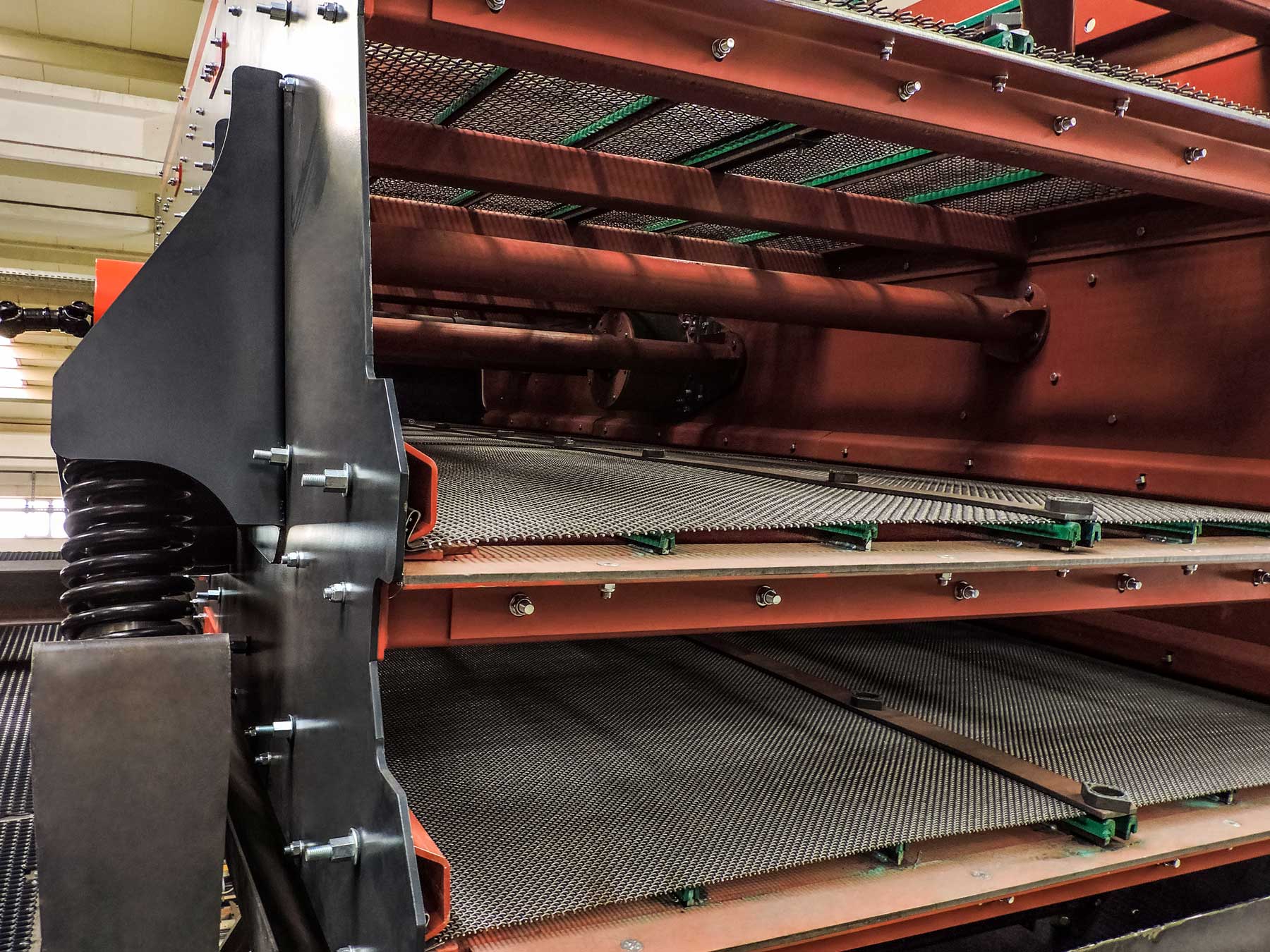

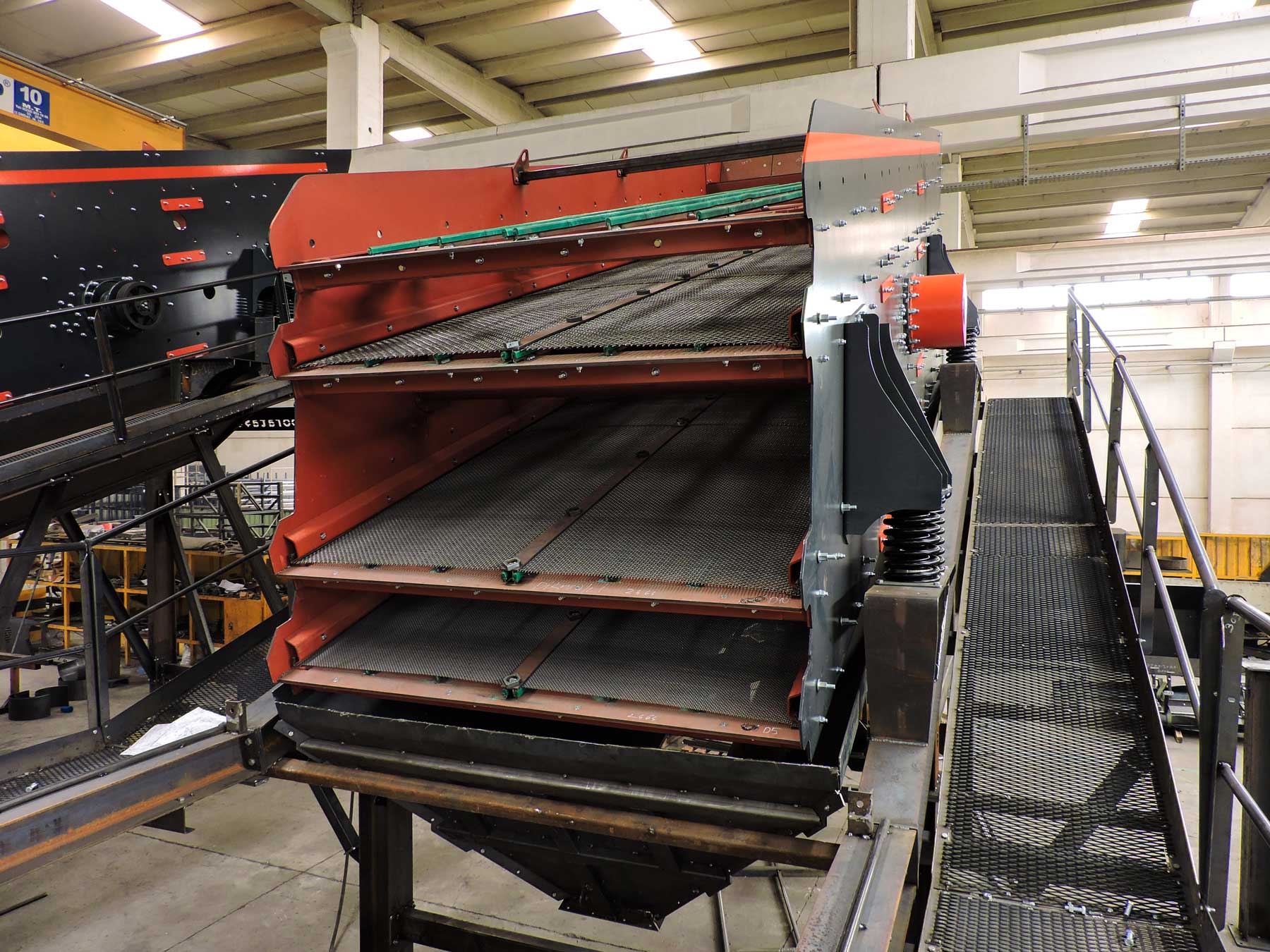

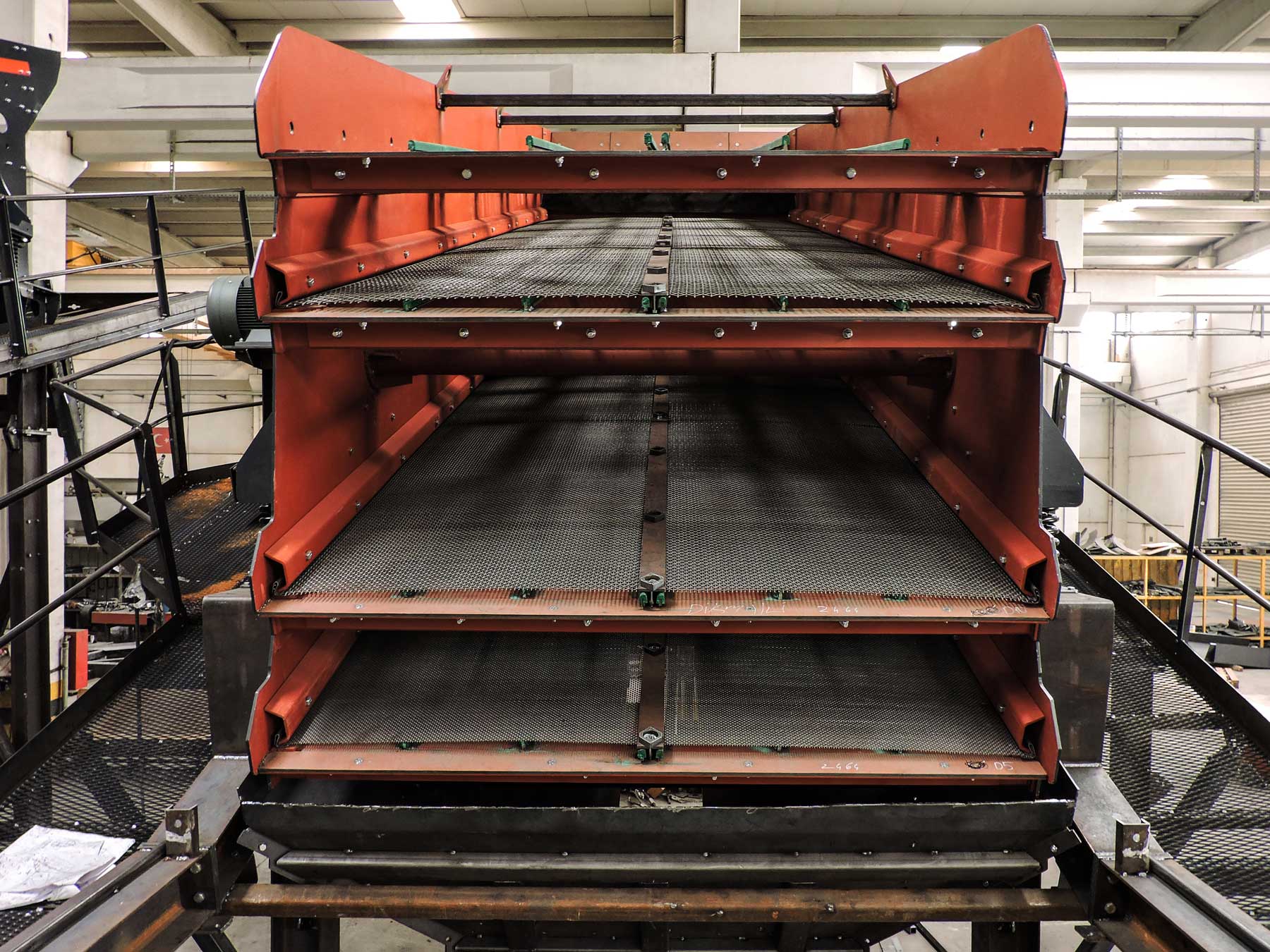

Boratas screens can have up to four decks depending on the number of ending products the customer wants. They are powered by a separate electric motor and are mounted with a shaft on their main body which contains special bearings and two counterweights. The movement of materials on our vibrating screens is circular and fluent without any disturbance.
Maintenance

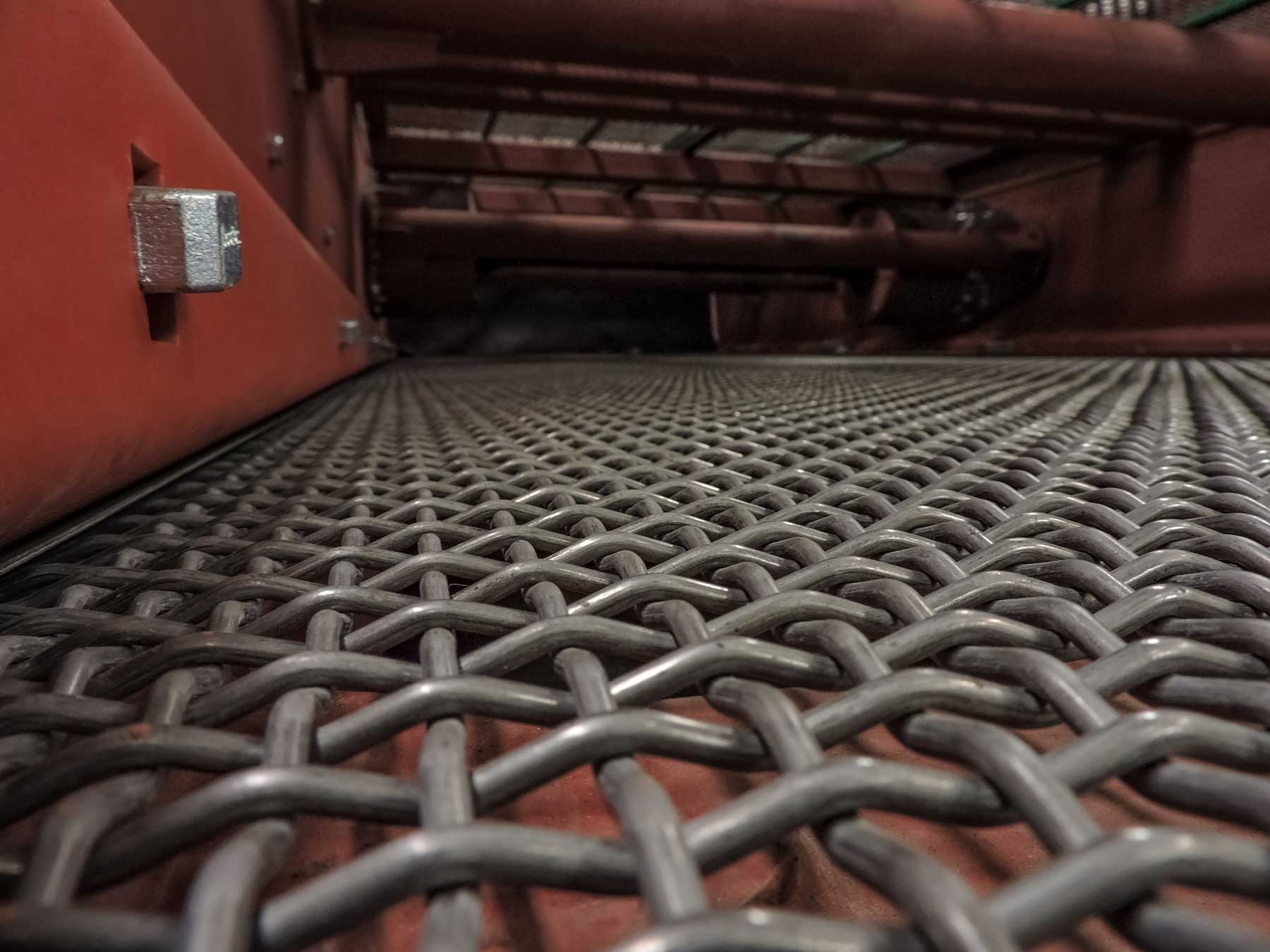

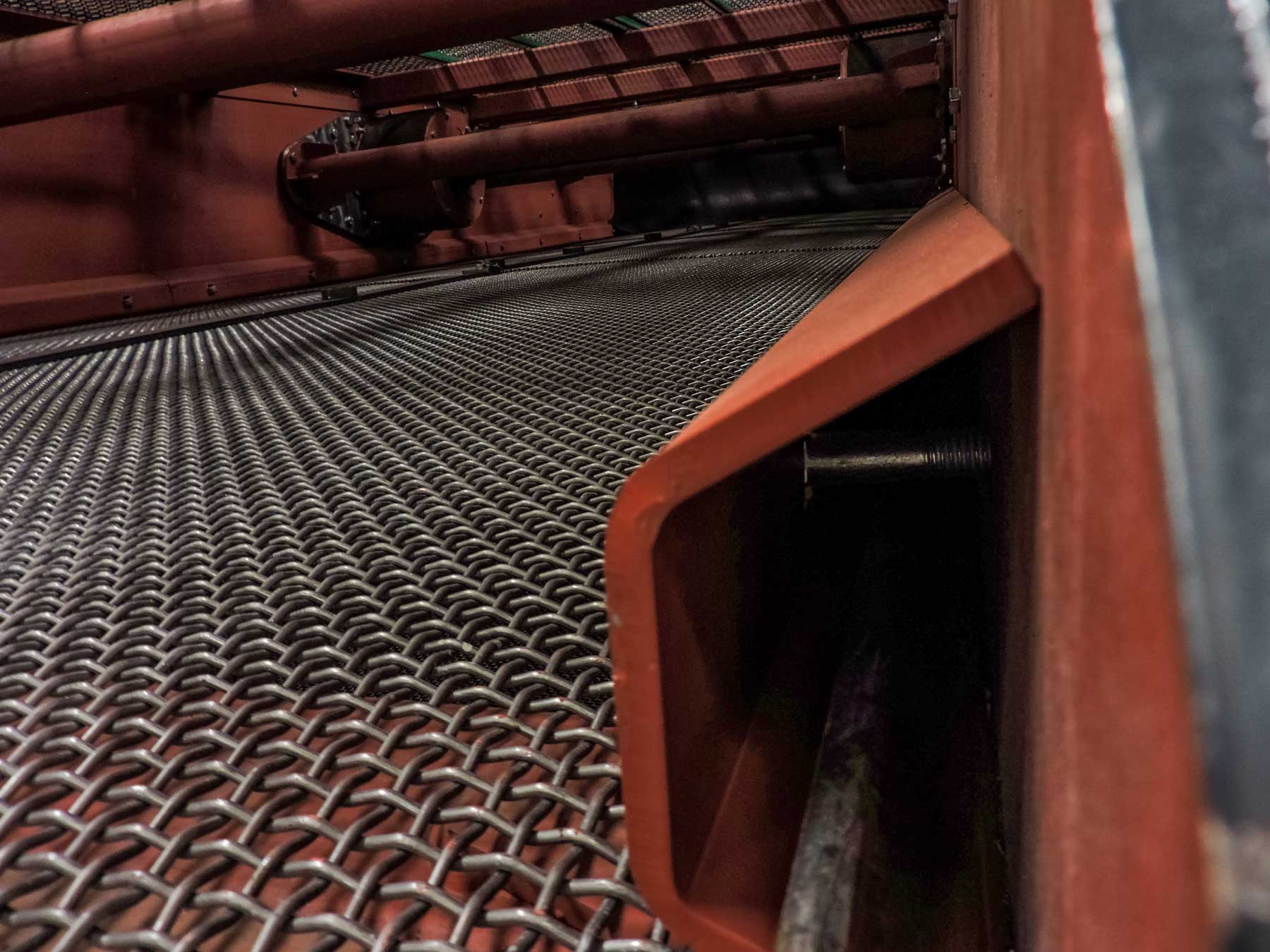

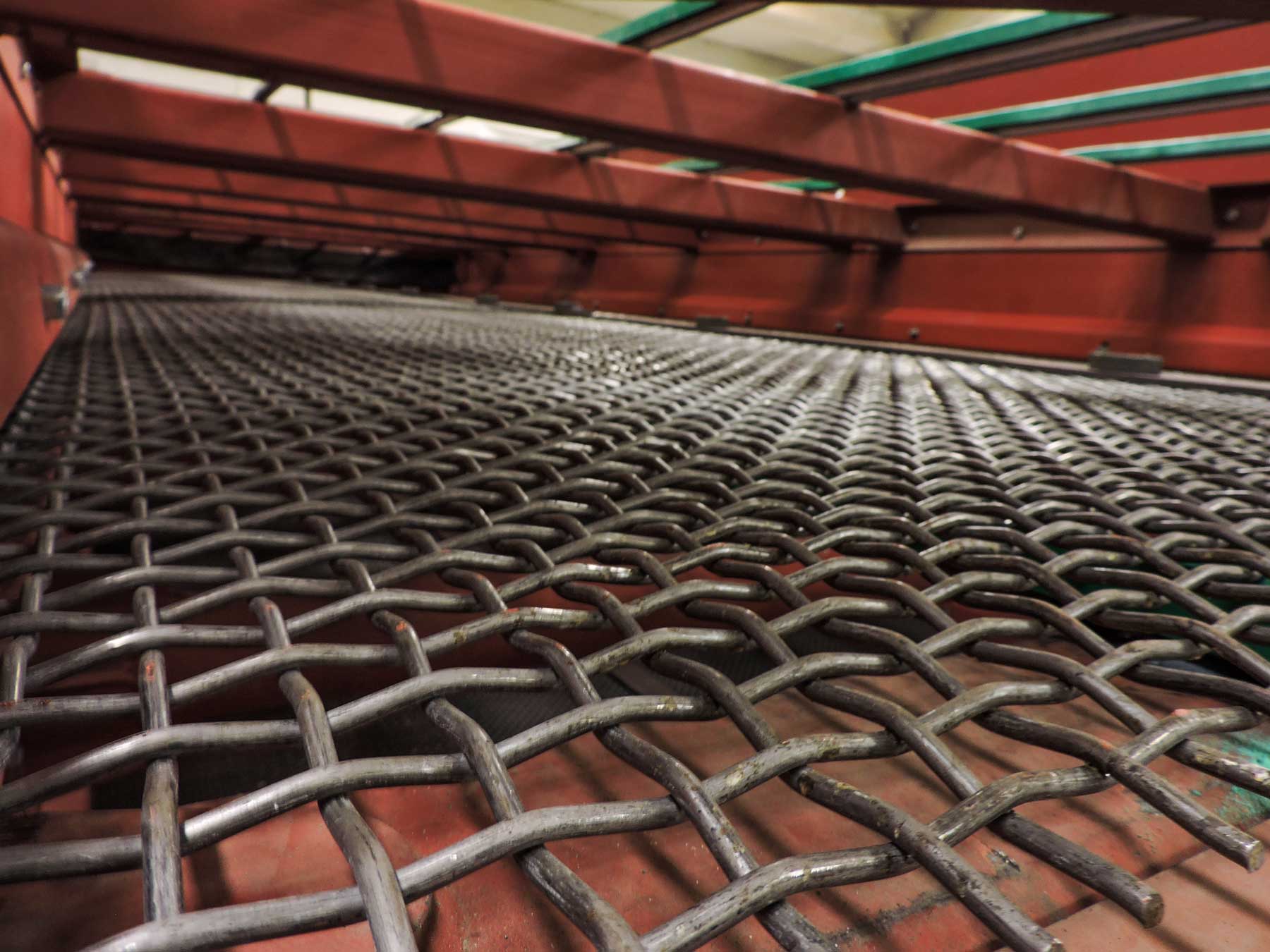

One of the most important points in a sieve is the distance between its decks. It must be large enough to facilitate the maintenance operations applied to the screen and its components, especially to the wire cloth. Accordingly, the tissue tensioning system is designed to facilitate and speed up the replacement of the iron meshes. The discharge chute can also be movable on a rail to further facilitate the replacement of meshes.
Stationary Tertiary Impact Crusher TDK series models and data- General Table
| Model | Dimensions (mm) |
Speed (RPM) |
Engine (kW) |
Weight (kg) |
||
|---|---|---|---|---|---|---|
| 2 decks | 3 decks | 4 decks | ||||
| BSTE-1240 | 1,200 x 4,000 | 1,000 | 11 | 4,800 | 5,100 | 5,500 |
| BSTE-1545 | 1,500 x 4,500 | 1,000 | 15 | 5,750 | 6,550 | 6,950 |
| BSTE-1650 | 1,600 x 5,000 | 1,000 | 18.5 | 6,600 | 8,000 | 8,300 |
| BSTE-2050 | 2,000 x 5,000 | 1,000 | 22 | 8,600 | 8,900 | 12,000 |
| BSTE-2060 | 2,000 x 6,000 | 1,000 | 30 | - | 12,000 | 13,000 |
| BSTE-2460 | 2,400 x 6,000 | 1,000 | 30 | - | 15,000 | 16,000 |
* Given, approximate, weights include only the screen body. Does not include the front chute, lower trough, and chassis
Download The Boratas Stationary Crushing and Screening Machines PDF Catalogue
' Boratas Stationary Crushing and Screening ' PDF Catalogue.

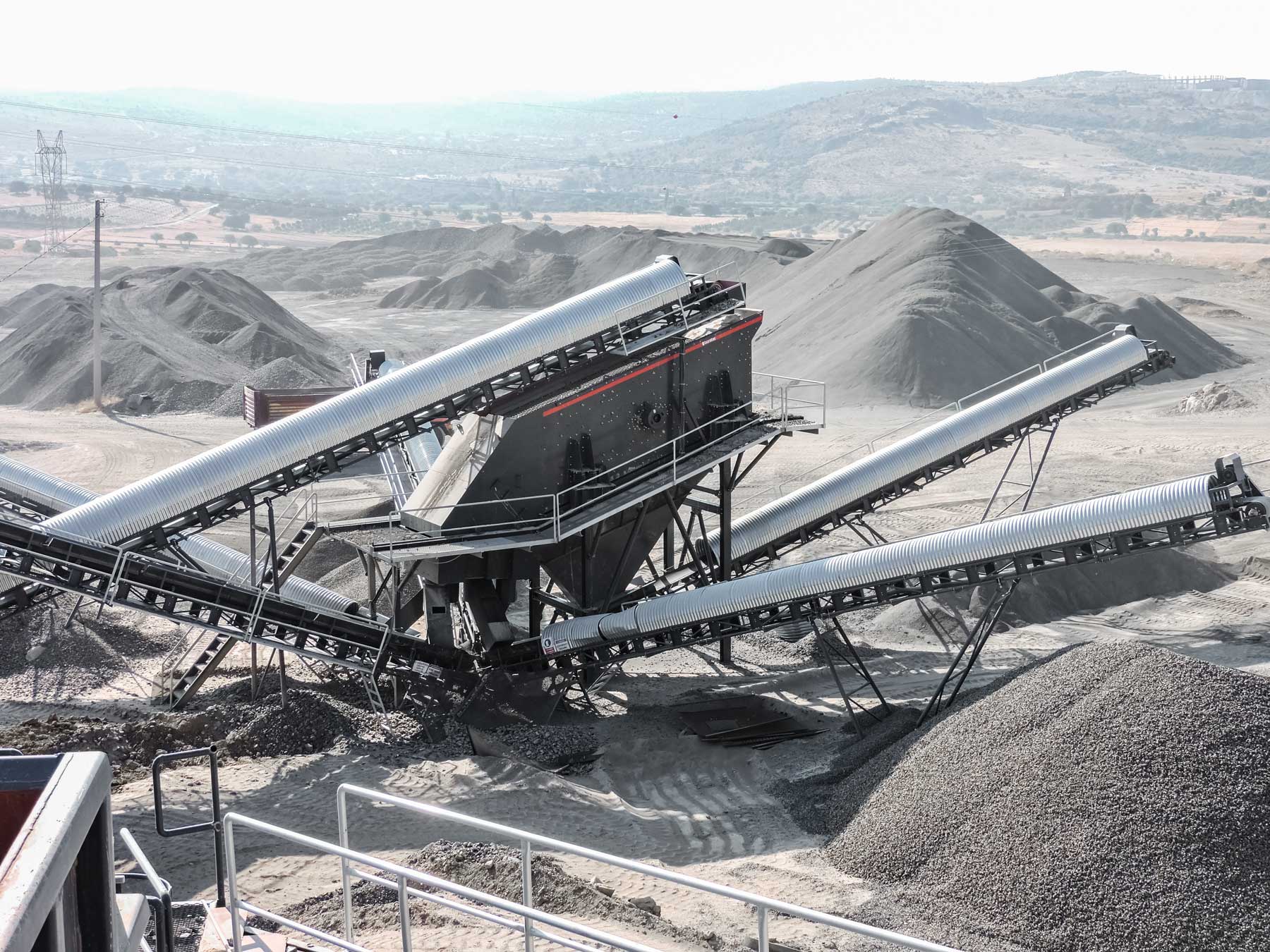

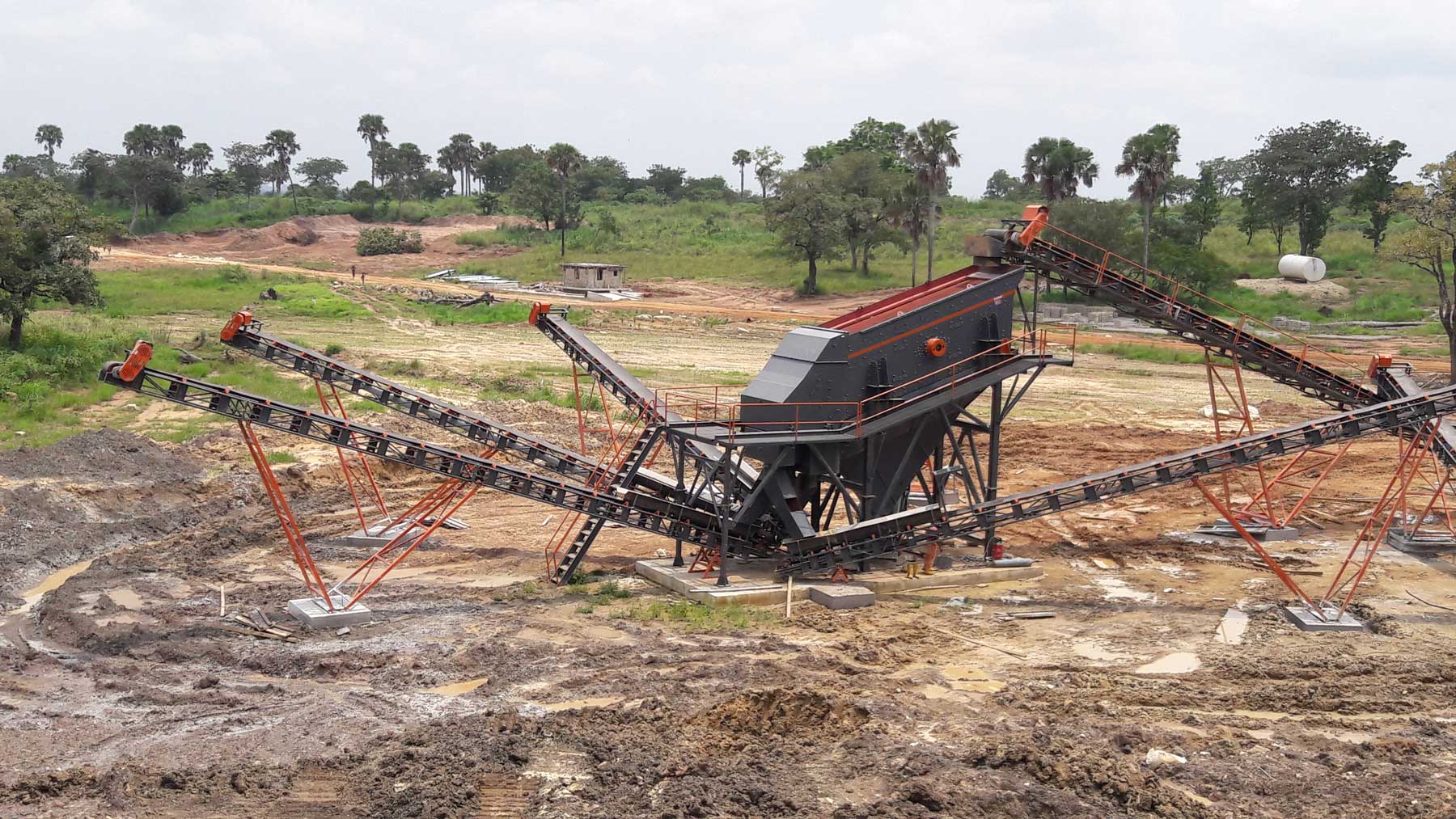

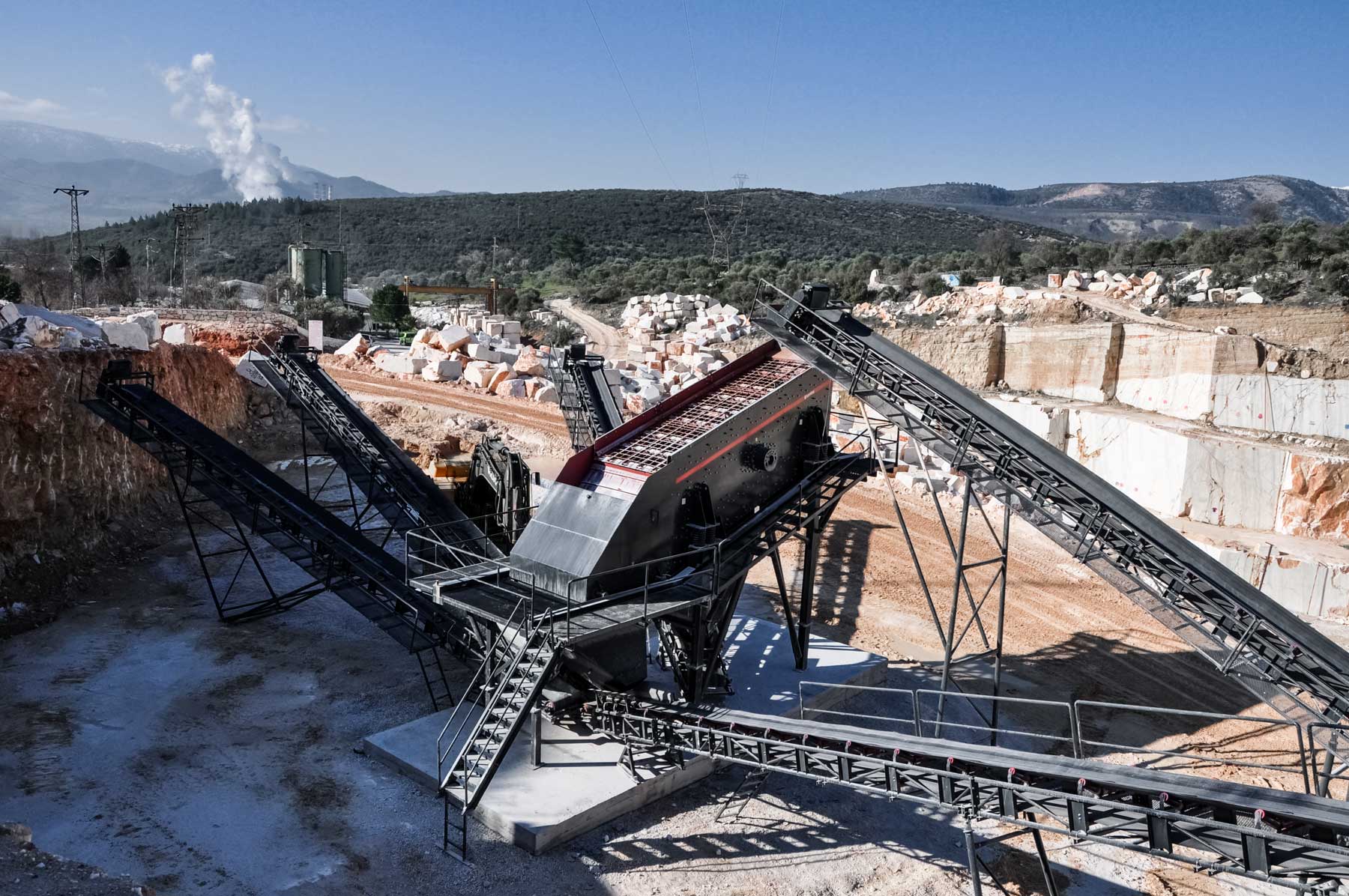

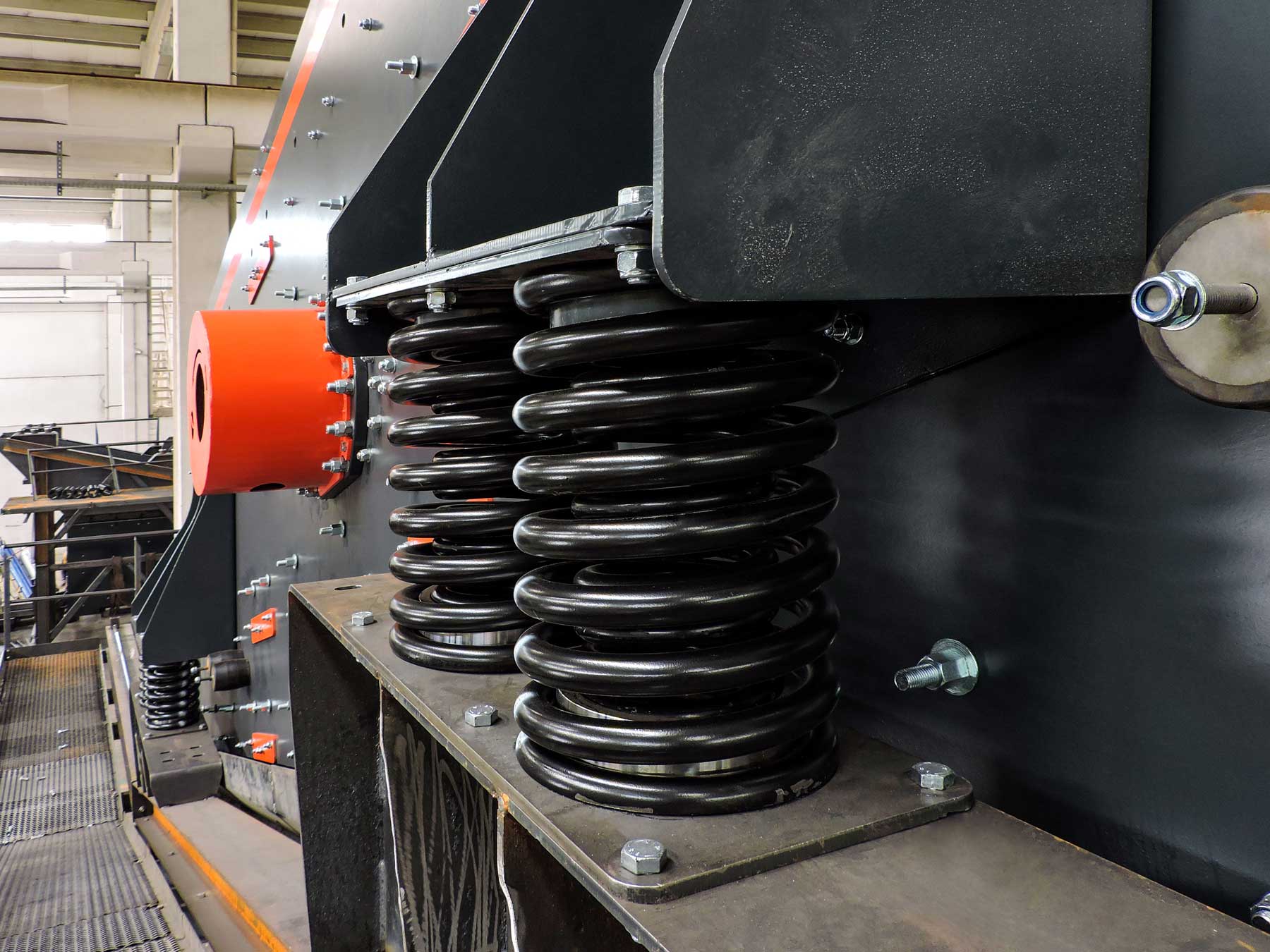

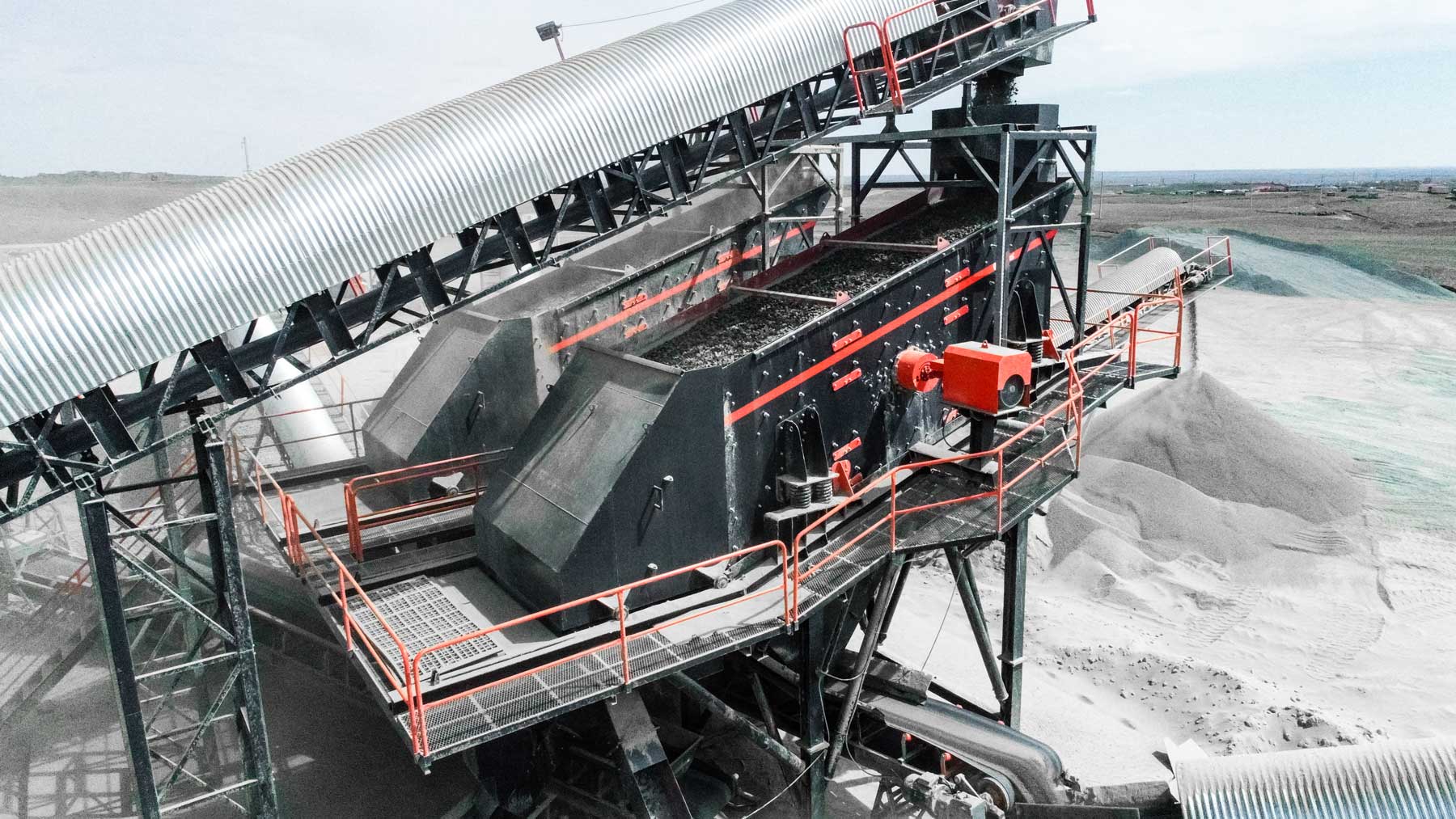

Related Photos
Related Videos
Here is a short video of testing the BSTE Boratas Vibrating Screen, inside the factory.
The use of a high-quality and efficient vibrating screen is a prerequisite, as the latter greatly influences the classifying of the crushed product, which is the most important step in a crushing system.

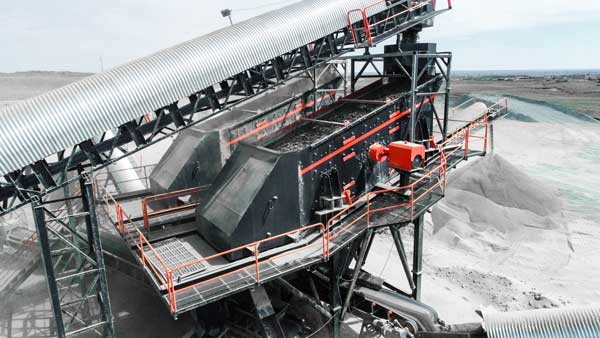

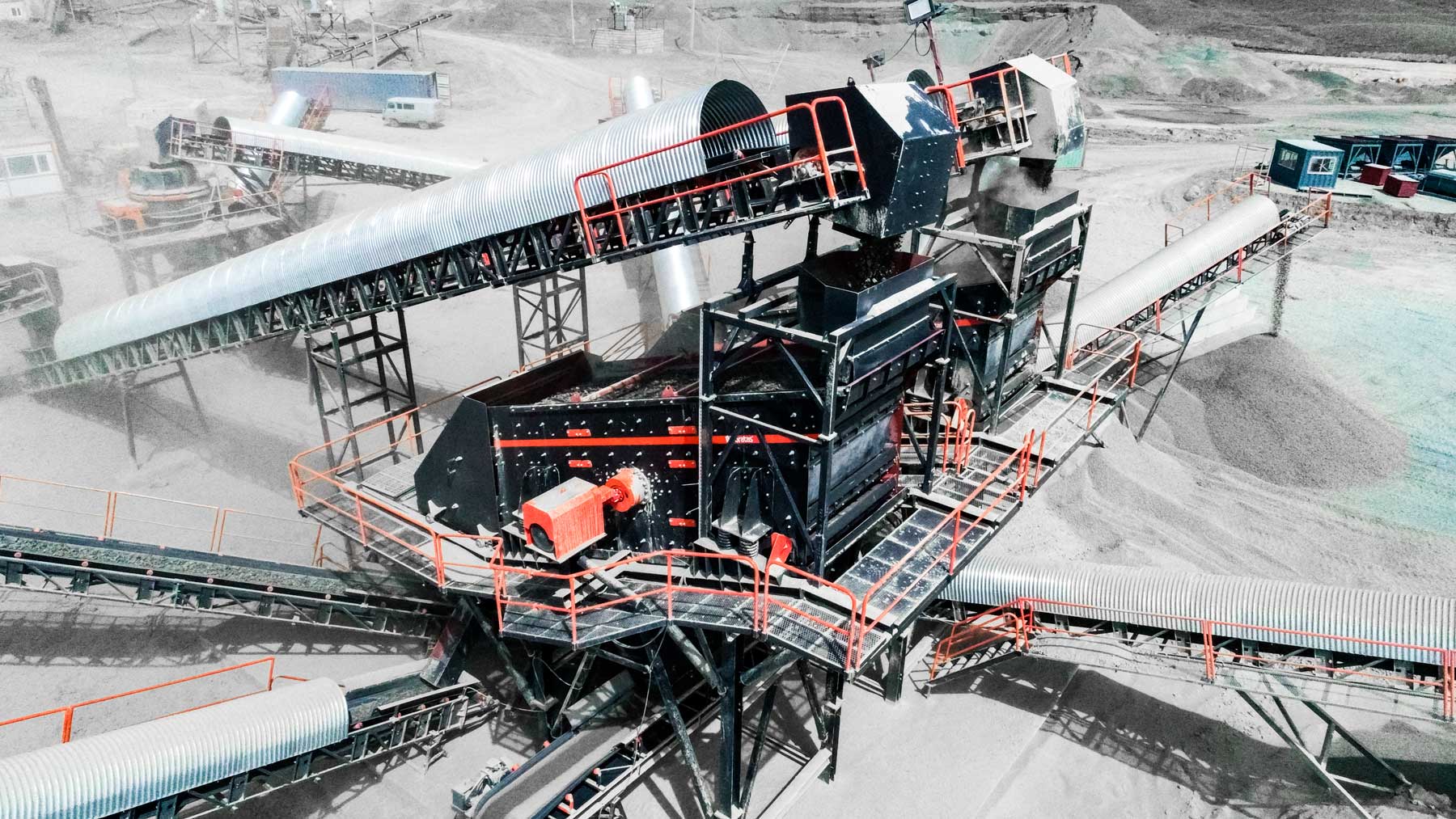

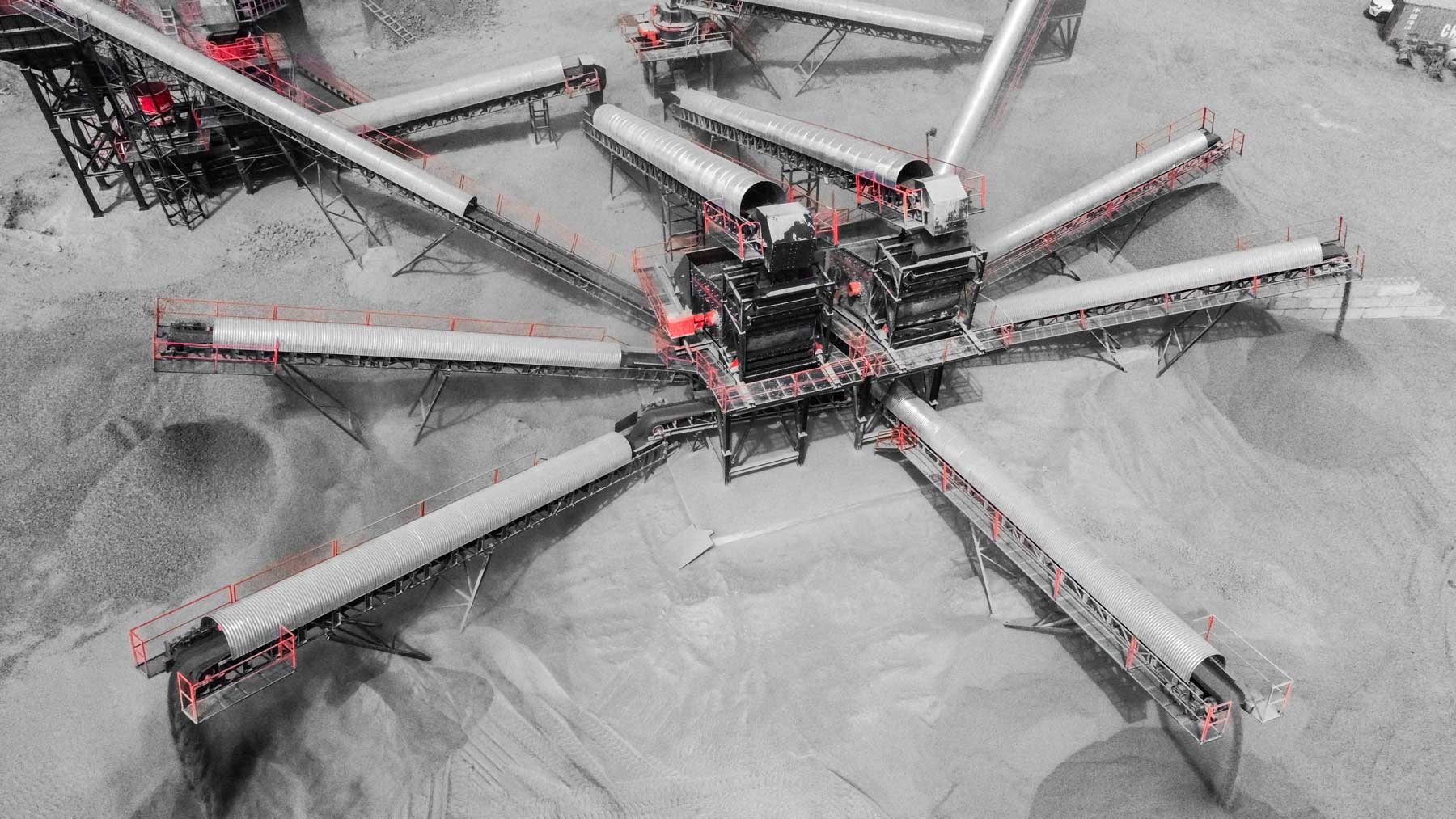

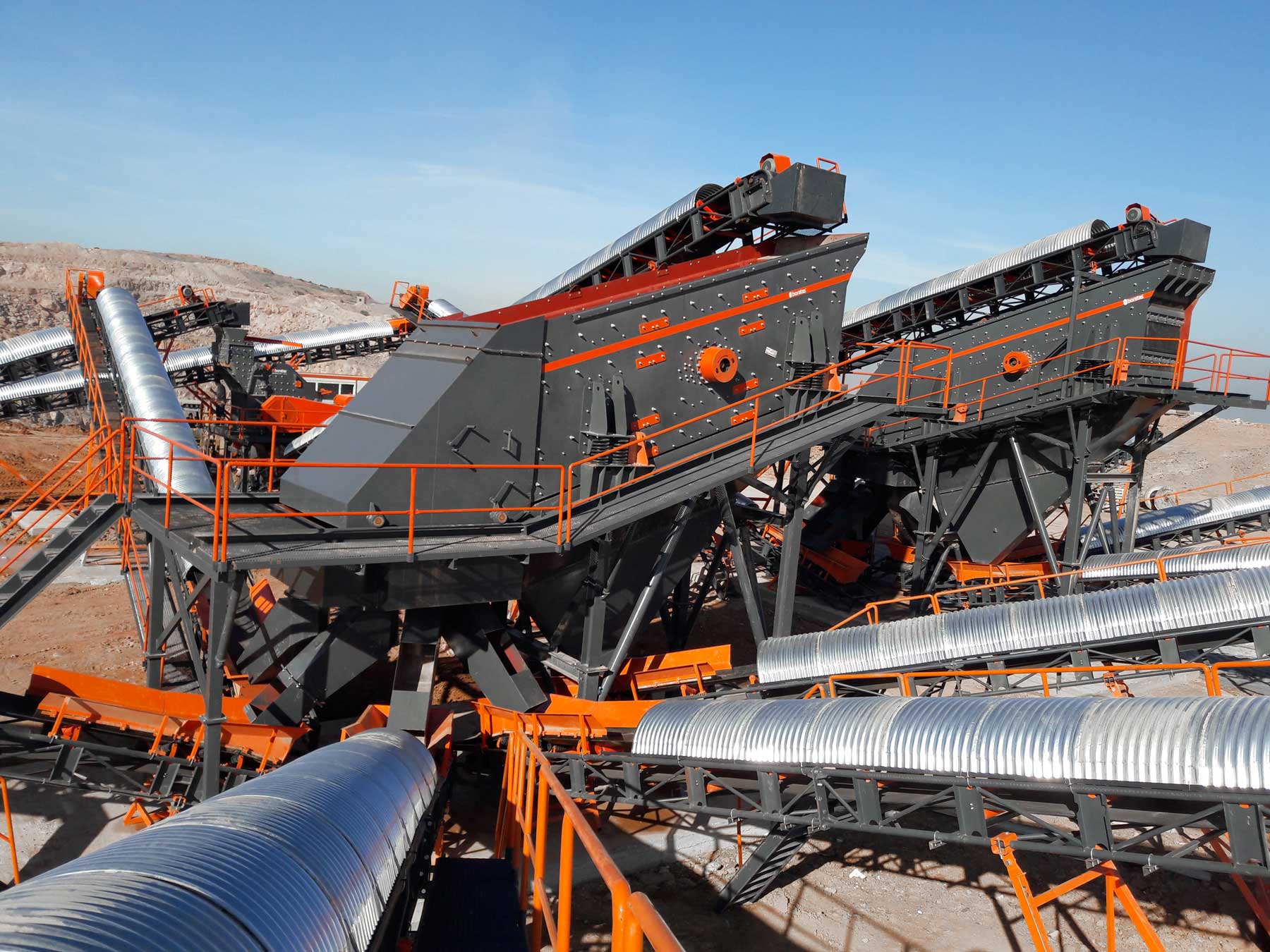

Crushing and Screening Plant with 250-275 tph
Crushing material : Bazalt
360 3D view
Click and Drag to left/right inside the box below, in order to view 360 degrees render-image.
